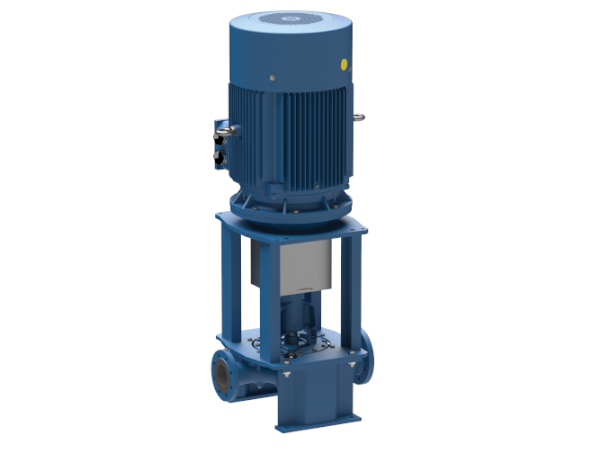

ALLMARINE NIM / NAM

Brand	Allweiler
Type	ALLMARINE NIM / NAM
Max. flow	2400 m³/h
Max. head	100 m
Max. temperature	Sea water < 40°C, fresh water < 140°C
Materials	Cast iron, Nickel aluminium bronze

Download brochure

Product Information

Main Applications
Ballast and firefighting pump, bilge draining, cooling water feed, general service.

Design
Single-stage, single-fl ow volute casing centrifugal pump.
NIM type of construction: Volute casing of the inline design.
NAM type of construction: Volute casing with axial intake and radial outlet.

Pump series designed to permit removal of the bearing unit without requiring removal of volute casing, pipelines or driving motor. This makes these design types particularly well suited to situation where heavier motors are needed to achieve higher flow rates. Feet at the lower flange of the pump bracket allow vertical pedestal installation. Optional, laterally arranged brackets permit vertical wall mounting.
